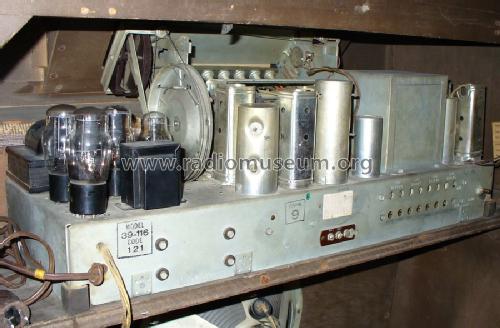

39-116RX World's Fair
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 50588
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Superhet with RF-stage; ZF/IF 470 kHz
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 10 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 39-116RX World's Fair - Philco, Philadelphia Stg. Batt
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 34.6 x 36.4 x 14.4 inch / 879 x 925 x 366 mm
- Notes
-
Motorised tuning and AFC. The last 6 tubes in the tube list relate to the "Mystery Tuning Control Amplifier and Control Unit".
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Mentioned in
- Philco Radio 1928-1942
- Literature/Schematics (1)

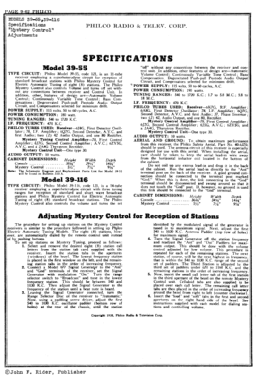

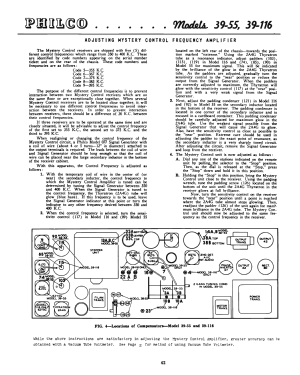

- Pre-War Consoles (Philco Service Bulletin)
- Literature/Schematics (3)
- Philco Folder PR671 for 1939.
- Other Models
-
Here you find 4041 models, 2217 with images and 3690 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
Collections
The model 39-116RX is part of the collections of the following members.
Forum contributions about this model: Philco, Philadelphia: 39-116RX World's Fair
Threads: 3 | Posts: 13
Fellow radiophiles:
Old radios often require an inconvenient long wire antenna for operation in the AM band. The Philco 39-116 is one such radio.
This top-of-the-line 1939 set can be tuned on the AM band plus 2 short wave bands with the slide-rule dial, or by a number of AM-band-only presets, that are selected remotely by the Mystery Dial remote control.
My friend Ron Roscoe owns one of these sets. The "WRON" preset you see lit up is for his Ramsey Kit solid state home transmitter. The other presets should be recognizable by Boston, Massachusetts USA residents.
Ron also has a problem with a lot of light dimmer noise in his house. Long wire antennas are particularly susceptible to this kind of electric field interference.
Loop antennas reject the electric field pretty well, while deriving the signal from the magnetic field. So Ron and I set about adapting his set for reception with an external 1920's loop antenna which he already owned.
Alternatively, a new loop could have been hidden inside the spacious console.
The problem with using loop antennas is that they must be tuned with a capacitor to realize the full sensitivity of the antenna. Conneting the loop directly to the untunned primary of the loosely coupled antenna coil produced poor sensitivity.
The input RF coil is meant to be very loosely coupled to the tuned RF secondary to avoid detuning the secondary. Usually, the primary has a large number of turns that is placed a fair distance from the secondary. In this case the distance is nearly 2 inches (5cm).
The problem remains that the loop is not tuned with a capacitor, therefor it can't capture much magnetic field signal.
We decided to tune the loop antenna by disconnecting the AM band input coil and use the RF tuning capacitors already in the radio to tune the loop. This uses the variable RF capacitor (10) in local slide-rule tuning mode, and the 8 preset tuning capacitors for remote tuning.
We measured the secondary of the RF transformer (1) that we disconnected at terminal 3, and found 240uH of inductance.
In an extraordinary case of good luck, Ron's loop antenna also had 240uH of inductance, so it needed no additional turns of wire to increase the inductance, or to have turns removed or moved appart to reduce inductance for a good RF alignment.
If the inductance of the loop were too small, an external series inductor could have been used to add to 240uH. This additional inductor should have been an adustable one for ease of RF alignment.
The total inductance of series inductors is the sum of the individual inductances. The calculation for the net inductance of parallel inductors is the same as parallel resistors. i.e.: a 300uH inductor in parallel with a 2.5mH inductor has a net inductance of 1/(1/300uH+1/2500uH)=268uH.
Adapting the existing circuit to the external loop
The switching scheme between slide-rule tuning and preset tuning uses the RF preamp stage only for slide rule tuning. But this did not pose a problem because the original AM band antenna coil (1) that the loop replaces, was used in both modes.
click to enlarge
The colored lines mark the connectivity of the antenna coil secondary and for the new external loop in slide rule and preset tuning.
Internal connection of loop
We added a short 4 terminal strip to anchor the loop connections and to secure the disconnected terminal 3 of the disabled AM band RF antenna coil.
The two black and white wires lead to the loop antenna.
The anchoring tab of the strip was soldered directly to the terminal on the band switch wafer where terminal 3 of coil 1 was originally soldered. The white wire is on this tab.
Now terminal 3 of coil 1 is soldered to a spare lug on the strip.
The black wire was soldered to another lug an the tab and jumpered to where terminal 4 of coil (1) remained connected.
After the loop was connected, Ron added some wooden spacers between the black and white loop antenna wires to keep a stable separation between the two wires. Variation of this separation would affect alignemt at the top of the AM band, where the tuning capacitance is smallest.
Alignment
The set can be aligned following the usual procedure, with the difference that the adjustment of the input coil is replaced with the adjustment of the loop antenna inductance, as described above.
The alignment is easiest for the presets because there is no compromise of maintaining good alignment over the entire AM band.
Do the slide rule alignment first, then the presets. The low end of the slide rule AM band should be aligned by varying the loop antenna inductance, while the high end of the slide rule AM band dial should be aligned with trimmer capacitor (10A). This high end aligment should be done with the loop and wires in the final operating position to account for parasitic capacitance properly.
Further comments
We tried 300 Ohm TV/FM twin lead to connect the loop, instead of the black and white wires, but the the capacitance of the twin lead was a few tens of pF and made it impossible to align the High end of the AM band.
Using thick wires (AWG<20) that are no more than 4 feet (1.3m) long helps preserve the Q, or sensitivity and selectivity, of the loop.
If you are a loop expert and can make a loop with a Q of 500 or more, it will be difficult to keep the loop in good alignment with the relatively loose tracking of the padder capacitor arrangement of the local oscillator. A Q up to 100 should be very sensitive and give good alignment performance.
Besides loop sensitivity, Q establishes the reception bandwidth. A Q of 100 at 1MHz means an RF bandwidth of 10kHz, or an audio bandwidth of 5kHz.
One definition of Q is the ratio between the inductive reactance of the loop and the equivalent series resistance of the loop, at a particular frequency.
Q=XL/Rseries
Q=2*pi*Fresonance*L/Rseries
This means that a tuned loop with a Q=100 is roughly 100 times more sensitive at resonance than the same loop without resonance. One way to understand this proportion, is that resonance reduces the impedance of the loop to the magnetic field from the inductive reactance plus the equivalent series resistance, to just the equivalent series resistance.
The high impedance/inductance of the original RF antenna coil (1) makes it suitable to connect directly to an externnally tuned loop, even up to the 240uH of Ron's loop. But Ron was not about to sacrifice the wonder of automatic control from 1939 with a manually tuned loop with an external tuning capacitor!
Note that the loop only works for the AM band. The two SW bands still take their signal from the original antenna terminals.
Regards,
-Joe
Joe Sousa, 18.Nov.09
(This was posted here several months ago but it seems to have vanished, so this is a repost - too bad too, because I had pictures and everything).
Here is my definitive version of how the remote receiver works:
1. In the beginning, the station selecting switch (SSS) can be in any one of 8 different positions corresponding to the last station tuned - it doesn't matter which one.
2. Receiving the first pulse from the Mystery Control (MC) causes the holding relay to engage (and it must remain engaged during steps 3-5 below). The first pulse also causes the stepping relay to advance its ratchet one position. However at this point it does not yet cause the SSS to move. (You are still tuned to the last station you were listening to).
3. Pulses no. 2 and 3: these are for volume control. They also do not move the SSS.
If pulse 2 is extended (by way of pressing down on the fingerstop on the MC), then the volume control motor is activated in the "down" direction for as long as the fingerstop is depressed. If there are three pulses and the third is extended, then the volume is raised. If there are two or three pulses but they are not extended, then nothing happens.
4. When the fourth pulse (if any) is received, the pawl on the SSS (secondary) ratchet is released, causing the spring on the secondary ratchet to quickly rotate the SSS back to station 1. This happens very fast - it literally snaps back, in less time than the inter-pulse gap. (In my radio, I had to clean and lube the SSS and exercise it a few times before this would happen. The spring is strong enough, but not that strong).
5. If any further pulses are received, each one will cause the SSS to advance one more position. The SSS has already been pulled back to station one in step 4 above. If no further pulses are received, it means you intended to tune station 1 and we go right to step 6. Otherwise, the 5th pulse causes it to advance one position and selects station 2, the 6th pulse selects station 3, etc. up to the 11th pulse which selects station 8.
6. When no more pulses are received, the holding relay drops out and the SSS stays where ever it was when it got the last pulse. The cycle is complete.
7. The next time you twist the dial on the Mystery Control, the entire process starts over again with step 1.
Michele Denber, 25.Jul.09
Hello dear Radio Collectors. I am looking for a copy of the Rider's information for this radio. In particular I need the parts list and the chassis parts view. The copy I have is of poor quality and the small numbers blur together. I'd be happy to do the scanning and add it to the model if someone has a hardcopy they could send me. Thanks!
Michele Denber, 30.Jun.09
