• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 238194

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 18FX6 18FW6 18FY6 34GD5 36AM3

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / Either AC 50 to 60 cycles, 110 to 120V or DC 110 to 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.75 W (1 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 1-X-1K "The Colorflair" Ch= RC-1202A - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 11.07 x 6.375 x 4.6 inch / 281 x 162 x 117 mm

• Notes

• The RCA 1-X-1K is an AC/DC operated 5 tube BC band receiver. BC band tuning range is 540 to 1600kHz.  Uses Qty(1) Elliptical PM 3" x 5" speaker. Has built-in ferrite antenna. Cabinet color is Honey Beige.

  The RCA datasheet "1960 No. 22" groups the following models:

  Model Series	Model Number	Chassis	Cabinet Color
  1-X-1	1-X-1E	RC-1202A	Shell White
  1-X-1	1-X-1F	RC-1202A	Pink
  1-X-1	1-X-1H	RC-1202A	Turquoise
  1-X-1	1-X-1K	RC-1202A	Honey Beige

  Further information in this article: "The RCA chassis RC-1202 including suffixes" - explains the many suffixes for chassis RC-1202.

• Net weight (2.2 lb = 1 kg)
• 2.75 lb (2 lb 12 oz) / 1.249 kg

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 21, 1961

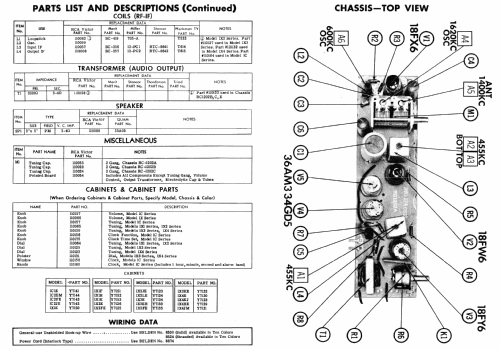

• Literature/Schematics (1)
• - - Manufacturers Literature (RCA Datasheet "1960 No. 18", dated 8-26-60)

• Literature/Schematics (2)
• Beitman Radio Diagrams, Vol. 21, 1961 (Page 134)

• Literature/Schematics (3)
• - - Manufacturers Literature (RCA Datasheet "1960 No. 22", dated 3-27-61)

• Literature/Schematics (4)
• Photofact Folder, Howard W. SAMS (Date Nov. 1961, set 554, folder 10.)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.

• Other Models

• Here you find 5131 models, 3234 with images and 4167 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
