• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1948 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 268790

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1620_Pentode 1620_Pentode 1620_Pentode 6X5GT

• Main principle
• 3 AF stage(s)

• Wave bands
• - without

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 60 cycles, 115-120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

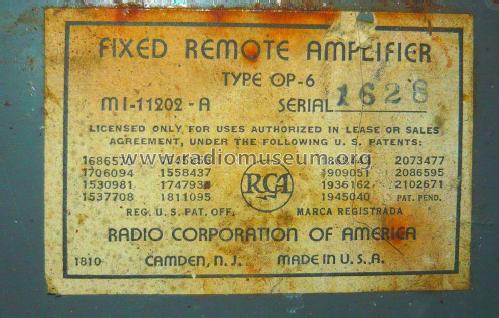

• Model: Portable amplifier MI-11202-A OP-6 - RCA RCA Victor Co. Inc.; New

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 310 x 210 x 180 mm / 12.2 x 8.3 x 7.1 inch

• Notes

• Microphone amplifier for ribbon mics.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Author
• Model page created by Michael Gnaedig-Fischer. See "Data change" for further contributors.
