• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1946 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 57038

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1P5GT 1A7GT 1P5GT 1H5GT 1A5GT or 1A5G 117Z6GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Line / Batteries (any type) / 105-125 AC/DC / 90 & 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 0.17 W (unknown quality)

• from Radiomuseum.org

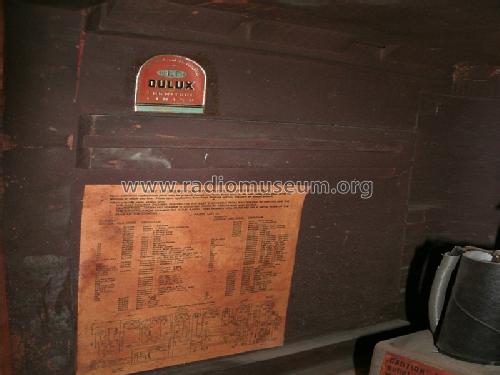

• Model: Silvertone 7112 Ch= 101.664 - Sears, Roebuck & Co.; Chicago

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Literature/Schematics (1)
• Riders 14-54
