• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1951–1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 86367

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 or 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Silvertone 10 Clock Receiver Ch= 132.896 Order=57K 010 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 10.625 x 5.75 x 5.25 inch / 270 x 146 x 133 mm

• Notes

• The models Silvertone 10 (color Brown) and 11 (color Ivory) with chassis number 132.896 have an electric clock and a loop antenna incorporated.

• Price in first year of sale
• 25.95 $

• Circuit diagram reference

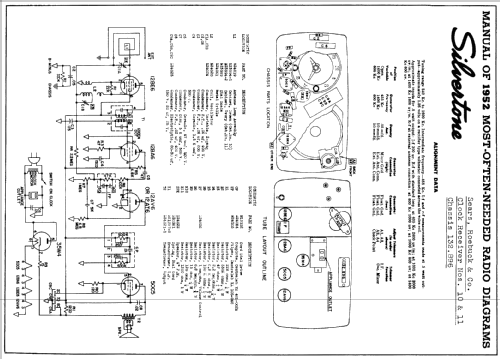

• Beitman Radio Diagrams Vol. 12, 1952

• Literature/Schematics (1)

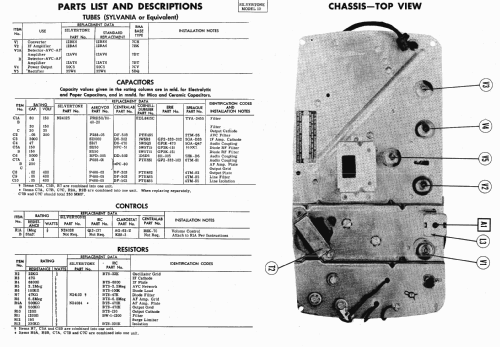

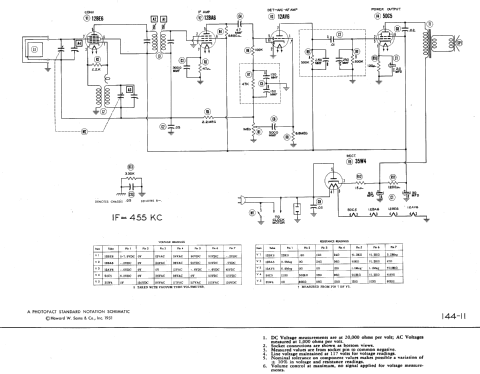

• Photofact Folder, Howard W. SAMS (Date 9-51, set 144, folder 11)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (Spring & Summer 1951, page 647. Fall & Winter 1952/53, page 856.)

• Literature/Schematics (4)
• Sears, Roebuck Catalogs (Silvertone) (Mid-Season/Fall 1951, page 289. Fall/Winter 1951, page 797.)

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
