- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1977 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 331258
-
- Brand: Silvertone
- Number of Transistors
- 7
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 3.5 inch = 8.9 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

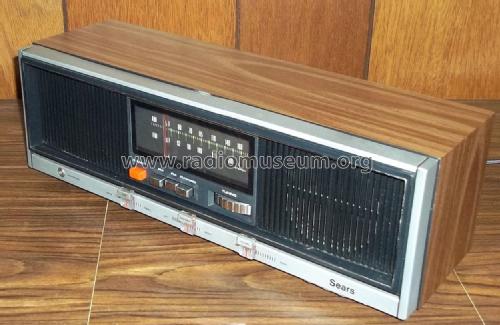

- Model: 23580 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 16.5 x 5.5 x 5.5 inch / 419 x 140 x 140 mm
- Net weight (2.2 lb = 1 kg)
- 4 lb 8 oz (4.5 lb) / 2.043 kg
- Price in first year of sale
- 39.50 USD
- Mentioned in
- Sears, Roebuck Catalogs (Silvertone) (1977 Christmas catalog)
- Author
- Model page created by Lester Troeckler. See "Data change" for further contributors.
