Silvertone 69 with Phonograph Order= 46DM 4984 or 4985

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1930/1931
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 56492
    • Brand: Silvertone

 Technical Specifications

  • Number of Tubes
  • 7
  • Valves / Tubes
  • Main principle
  • TRF without regeneration; Screengrid 1926-1935
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • Magnetic loudspeaker (reed) generic.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Silvertone 69 with Phonograph Order= 46DM 4984 or 4985 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 24.5 x 43.5 x 16 inch / 622 x 1105 x 406 mm
  • Notes
  • The Sears Silvertone 7-Tube Screen Grid with Truphonic Phonograph has a single dial tuning and volume control on front. For details of chassis see model 1050 "Super-magnetic speaker", electric pick-up, amplified by the radio, push-pull output. 4 legged lowboy with stretcher base. Phonograph has spring wound motor.

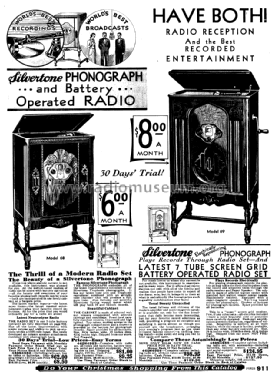

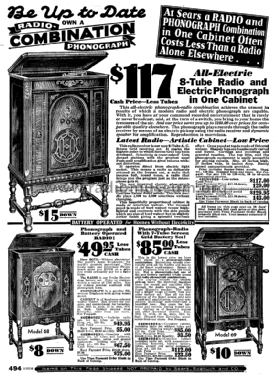

    Order number 46DM 4984 without tubes or accessories for $ 98.95 or 46DM 4985 with all tubes, batteries, battery tester and aerial for 124.95 or for easy payment: $ 12 "down" cash and $ 11 per month until paid $ 137.50. See details and summaries about Sears catalogs etc.
  • Price in first year of sale
  • 98.95 $ +
  • External source of data
  • Ernst Erb
