Silvertone 7065
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56976
-
- Brand: Silvertone

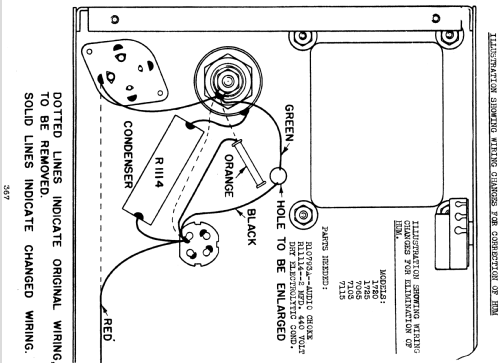

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / Either transformer: 25 cycles, 110V or 50 to 60 cycles, 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: Silvertone 7065 - Sears, Roebuck & Co.; Chicago
- Shape
- Console with any shape - in general
- Notes
-
The Sears Silvertone 7065 is an AC operated 10 tube BC band receiver. Has push-pull output stage with parallel 45 type tubes on each side for a total of Qty(4) output tubes.
The chassis and schematic used in this model is also used in models 1720, 1725, 7103 and 7115.
See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Colonial Radio Corp., Buffalo, NY (Sears Manufacturer Source Number Code 101).
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 4 = ca. 1934 and before
- Literature/Schematics (1)
- Riders Sears 4-22, 23 ; 5-13 ; 7-15
- Literature/Schematics (2)
- Silvertone Radios, Service Inf. 1928 thru 1936 (Pages 365 to 369)
