• Country
• United States of America (USA)

• Manufacturer / Brand
• Sparks-Withington Co., (Sparton); Jackson, Michigan

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 226233

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 78 78 76 78 78 85 42 80 VG-1

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Sparton 83 [1st det 78, VisoGlo] - Sparks-Withington Co., Sparton

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 23.625 x 39 x 12.375 inch / 600 x 991 x 314 mm

• Notes

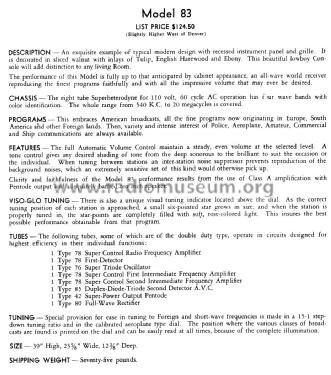

• There are two models 83, one with the VisoGlo tuning indicator and the other without but in principle the same chassis. VisoGlo tuning indicator VG-1 is extremely rare, even in the literature it is nearly not noticed.

  There are also two versions: This one with a tube 78 as first detector, described and photographed in the Sparton dealers brochure - and the model with the 6A7 as first detector, according to Rider's Sparton 5-15ff and sets we have found - see photos in the link. We don't know if both were produced. See the article about the two versions and this article here about season 1934/35.

• Price in first year of sale
• 124.50 $

• Mentioned in
• Pre-War Consoles

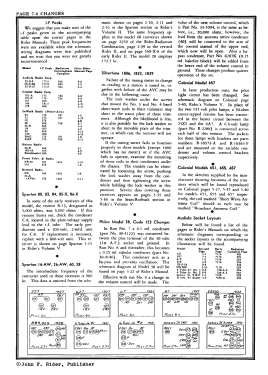

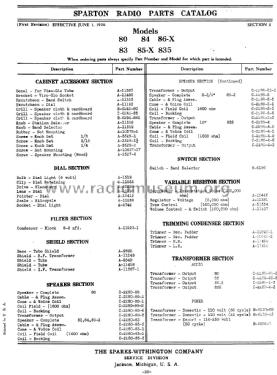

• Literature/Schematics (1)
• A Flick of the Switch 1930-1950 (p.128)

• Literature/Schematics (2)
• Pre-War Consoles (p.189)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.

• Other Models

• Here you find 818 models, 367 with images and 764 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sparks-Withington Co., (Sparton); Jackson, Michigan
