- Country
- Germany
- Manufacturer / Brand
- Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
- Year
- 1968/1969
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 128054
-
- alternative name: Fernsehgerätewerk Staßfurt

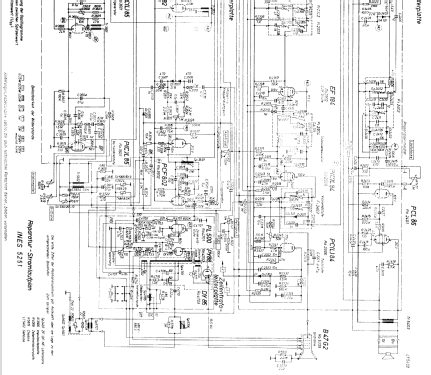

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Number of Transistors
- 1
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ines 5251 - Stern-Radio Staßfurt, VEB, RFT
- Shape
- Tablemodel, low profile (big size).
- Notes
- Das Fernsehgerät Ines 5251 ist ein Tischgerät mit einer implosionsgeschützten Bildröhre. Das Gerät hat einen Gitterbasistuner und empfängt Kanal 2 bis 12 nach CCIR. Der DF- Verstärker (Intercarrier) ist mit dem Transistor GF139 aufgebaut.
- Source of data
- -- Original prospect or advert
- Literature/Schematics (1)
- Service-DVD Funkverlag B. Hein
- Author
- Model page created by Andreas Hahn. See "Data change" for further contributors.
