• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1964 ?

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 95709

• • alternative name: Fernsehgerätewerk Staßfurt

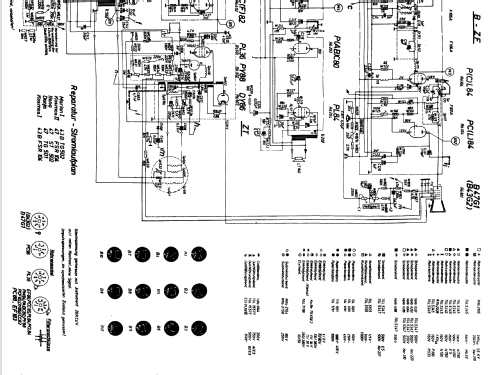

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PC88 PCF82 PCF82 PCF82 EF183 EF80 EF80 EF80 PCL84 PABC80 PL84 PL84 PL36 PY88 DY86 ECC82 B43G2

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Kosmos I 43 B FSR104 - Stern-Radio Staßfurt, VEB, RFT

• Shape
• Console with Push Buttons.

• Notes
• TV-Chassis Marion I mit 43-cm-Bildröhre, VHF GB-Tuner nach CCIR, UHF-vorbereitet. Radiochassis Saalburg, 4-tour. Fonolaufwerk.

• Price in first year of sale
• 2,450.00 Mark

• Source of data
• -- Original-techn. papers.

• Mentioned in
• -- Original prospect or advert (TV-Schaltungssammlung Werner/Zimmermann)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
