12AE7

Information - Help
ID = 5274



Tube type:  Double Triode
Identical to 12AE7

Base Novar, B9E = bigger than Noval, USA 1959
Was used by Radio/TV-reception etc.
Filament Vf 12.6 Volts / If 0.45 Ampere / Indirect
Description

Dual dissimilar triode intended for use at 12.6 V anode voltage as voltage amplifier and power amplifier driver in car radios.


Tube prices 2 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973

12AE7: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †

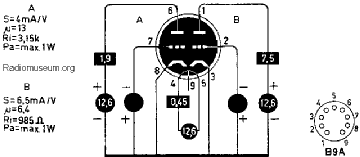

12ae7.png 12AE7: Datenblatt
Wolfgang Bauer


Just Qvigstad
12AE7: RCA Manual RC-21
Heinz Höger

Usage in Models 2= 1957?

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):2
