15DMSF

Information - Help
ID = 78583

Country:
Japan
Brand: Apollo アポロ (tube brand) - Nihon Ko-on Kogyo / Taiyo Denshi Kenkyshuso; Tokyo
Tube type:  Diode-Pentode
Identical to 15DMSF

Base Miniatur-7-Pin-Base B7G, USA 1940
Was used by Radio/TV-reception etc.
Filament Vf 1.5 Volts / If 0.025 Ampere / Direct / Battery =
Description

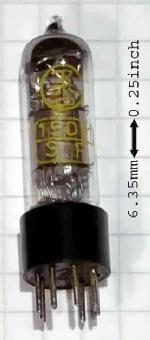

Tube has Japanese Character printed on the envelope. Bakelite tube base.


Dimensions (WHD)
incl. pins / tip
15 x 49 x mm / 0.59 x 1.93 x inch

15DMSF: Hand traced from Bamby radio by Nitto Trading Co of Japan
Joe Sousa

15dmsf_pinout.gif 15DMSF: Hand drawn
Joe Sousa


Just Qvigstad
15DMSF: Curve tracings in Tektronix 575 curve tracer
Joe Sousa

Usage in Models 1= 1955??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1
