1Б1П1b1p

Information - Help
ID = 19028

Country:
Soviet Union
Brand: Common type USSR (SU) tube/semicond.
Tube type:  Diode-Pentode
Identical to 1Б1П = DAF961
Base Miniatur-7-Pin-Base B7G, USA 1940
Filament Vf 1.2 Volts / If 0.06 Ampere / Direct
Dimensions (WHD)
incl. pins / tip		 19 x 57 x mm / 0.75 x 2.24 x inch

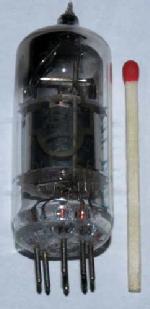

1Б1П
Jean Marchal

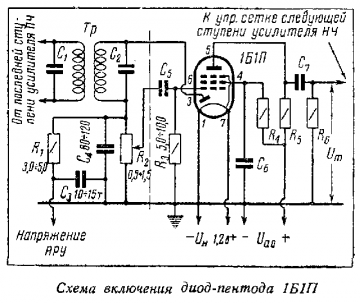

1b1p.png 1Б1П: Datenblatt
Wesselin Tzenow † 25.5.10

Just Qvigstad 		1b1p.png
1Б1П: Datenblatt
Wesselin Tzenow † 25.5.10
Usage in Models 1= 1948 ; 2= 1950 ; 1= 1951? ; 5= 1951 ; 2= 1952 ; 1= 1953 ; 1= 1955 ; 1= 1956 ; 2= 1957
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):16

Collection of

Collection of a member from D
Oskar Elm (D)
Michael Mischke (D)
Karl - Heinz Bossan (D)
Tomasz Szczesniak (PL)
Yury Savin (RUS)


1Б1П

Forum contributions about this tube
1Б1П
Threads: 1 | Posts: 1
Hits: 2934     Replies: 0
1b1p {1Б1П}
Jean Marchal
04.Dec.11 		  1
1b1p {1Б1П}

Désignation russe de la pentode/diode 1b1p : 1Б1П

1Б1П
