210VPT

Information - Help
ID = 9670

Country:
Great Britain (UK)
Brand: Cossor, A.C.; London
Tube type:  Vacuum Pentode   RF/IF-Stage   Controlling (mu)
Identical to 210VPT = CV1083 = VPT210 = ARP13
Similar Tubes
Normally replaceable-slightly different:
  CV1332
Other base:
  210VPT_4pin
First Source (s)
1935 : History of the British Radio Valve to 1940 p.145 & 195
22.Nov.1935 : Wireless World (The), London (WW, 79)
Base British-7-Pin, old (M7A) (Codex=Nr) Top contact with a cap.
Was used by Radio/TV-reception etc.
Filament Vf 2 Volts / If 0.1 Ampere / Direct / Battery =
Description

This tube is a variable mu type.


Information source History of the British Radio Valve to 1940   p. 145 & 195
-- Collector info (Sammler)
Babani, International Radio Tube Encyclopaedia
Taschenbuch zum Röhren-Codex 1948/49
156_5.png 210VPT: Telefunken Werkstattbuch
Wolfgang Bauer

Just Qvigstad 		210vpt_data.png
210VPT: COSSOR VALVE MANUAL 1935-6
Jose Casas-Avalos
Usage in Models 1= 1935?? ; 1= 1935? ; 4= 1935 ; 1= 1936 ; 1= 1937? ; 5= 1937 ; 2= 1938
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):15

Collection of

Michael Niermann (D)
Jose Luis Villabona Horreo (E)


210VPT

Forum contributions about this tube
210VPT
Threads: 1 | Posts: 4
Hits: 1095     Replies: 3
210VPT - Different version
Ottó Jancsek
15.Jan.20 		  1
210VPT - Different version

Hi All,

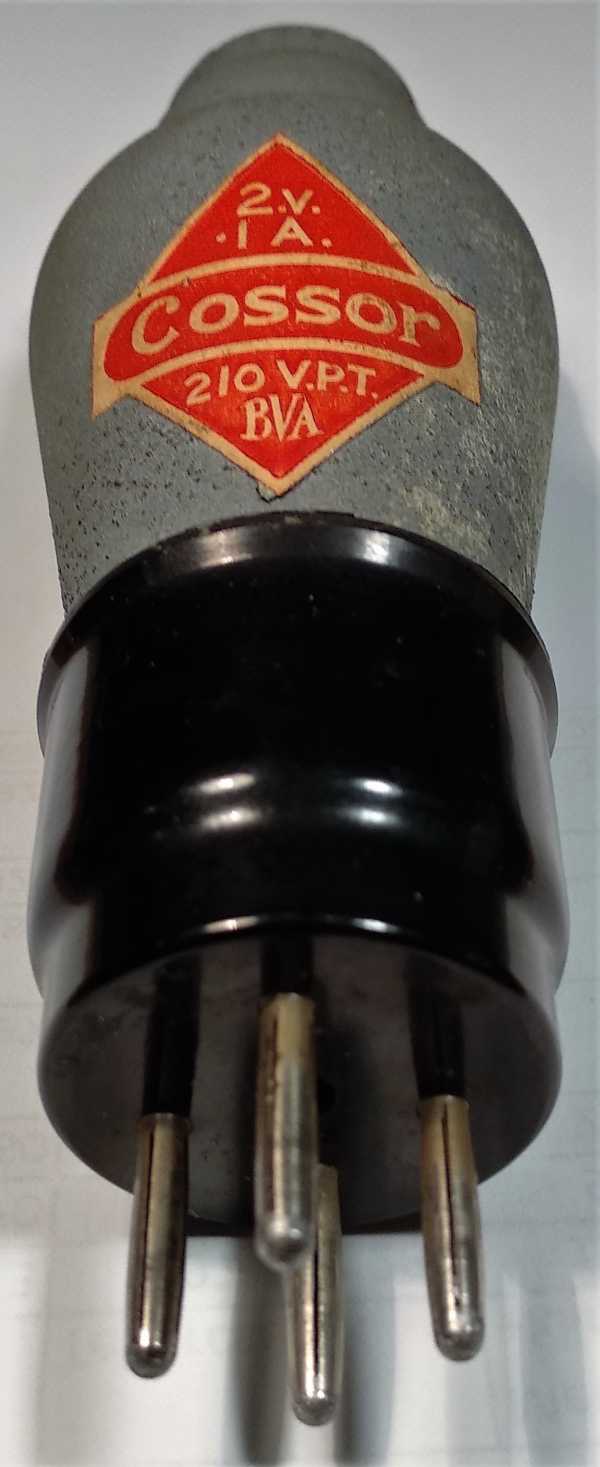

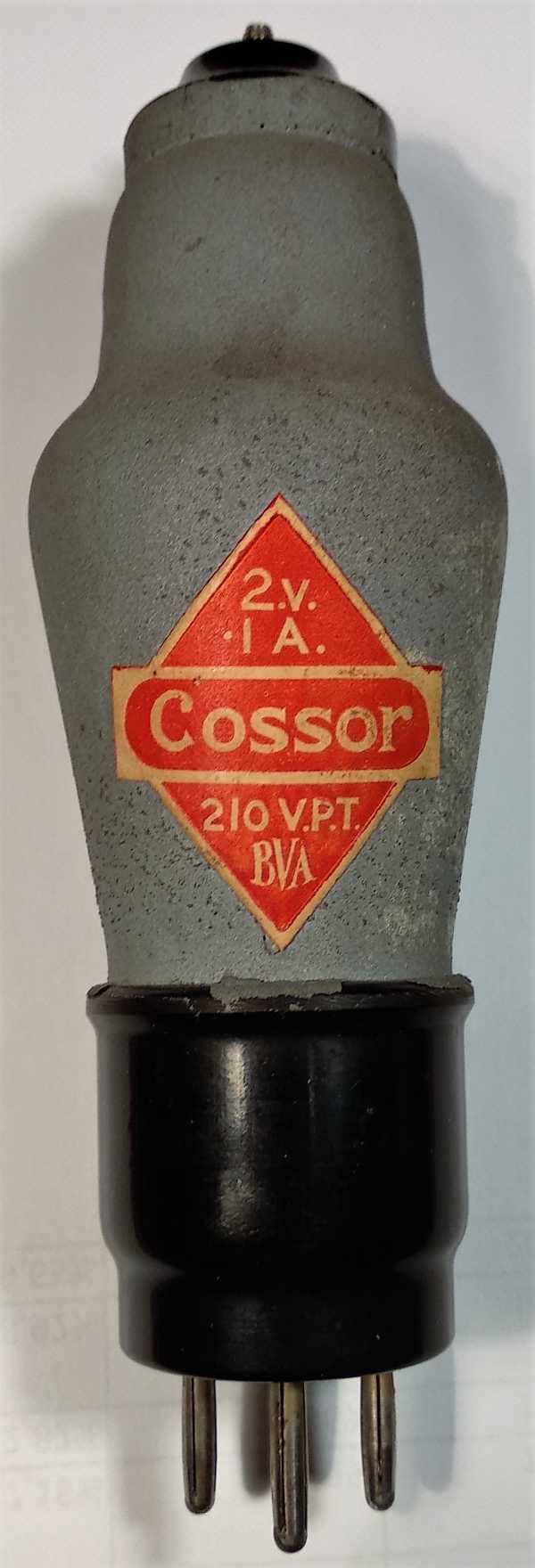

I have a Crossor 210VPT, but it has different base. Europe 4 pin.

See the attachments.

Do you think it's an older version?

Should I upload it's pictures here?

Thank you,

Ottó





Attachments

Wolfgang Bauer
15.Jan.20 		  2
210VPT - Different version

Hello Mr. Jancsek,

I found that in a Mullard comparison list.
Accordingly, there is also the version with the 4-pin base.

The comparison tube is the W21.

Your version should be created new as 210VPT 4-pin base.


Günther Stabe † 19.8.20
16.Jan.20 		  3
210VPT - Different version

The pictures may be uploaded to the created 210VPT_4pin.

G.S.
Ottó Jancsek
16.Jan.20 		  4
210VPT - Different version

Hi Günther & Wolfgang,

I uploaded the pictures.

Thank you for yor help.

Ottó



210VPT
End of forum contributions about this tube
