2N5486

Information - Help
ID = 40252

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  Transistor   UHF
Identical to 2N5486
Similar Tubes
Normally replaceable-slightly different:
  2N4416 ; E300 ; J310
Base Wires
Description Material/Aufbau: Silizium N-Kanal-Sperrschicht-FET;
Form/Case: TO-92, Anschlussfolge: DSG (auch: GSD);
Daten/electr.data: U F: 15 V; U S: <6.0 V; Isp: <1 nA; ß (beta): 4...8; N: 310 mW; Imax: 10 mA; Idss: 8...20 mA; BV gss: 25 V; f g (FT): <400 MHz; tmax j: __ °C;
Austauschtyp: BFS80, 2N5484 -
Dimensions (WHD)
incl. pins / tip		 5 x 5 x 4 mm / 0.20 x 0.20 x 0.16 inch
Weight 1 g / 0.04 oz
Information source
2N5486: Elektr. Jahrb. 1978 S. 195
Egon Strampe
to92_dsg.gif 2N5486: TTT Steidle 1981
Günther Stabe † 19.8.20
2N5486: National Semiconductor 1978
Heinz Höger

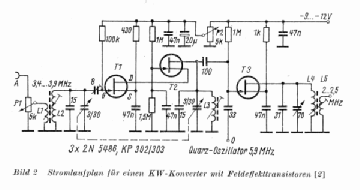

Usage in Models 1= 1980 ; 1= 1989? ; 1= 1990??
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):3

Collection of

Museum Roggenhofer (A)
Emilio Focosi (I)
Karlheinz Fischer (D)
