2SA838

Information - Help
ID = 61233

Country:
Japan
Brand: Common type Japan tube/semicond.
Tube type:  Transistor   Universal
Identical to 2SA838
Similar Tubes
Other base and data slightly different:
  BC308
Base Wires
Description

PNP silicon epitaxial transistor for universal purpose.
-


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip		 5 x 5 x 4 mm / 0.20 x 0.20 x 0.16 inch
Weight 1 g / 0.04 oz
Information source -- Collector info (Sammler)   TTT Steidle 1981

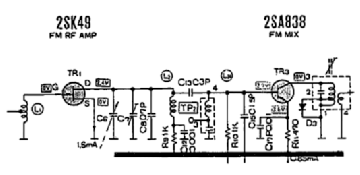

2SA838: Ausschnitt aus Schltg. Panasonic DR22
Karl-Heinz Entrich † 7.21
to_92_bce~~126.gif 2SA838: TVT 1969 Verlag Nolde Dachau
Günther Stabe † 19.8.20
2SA838: Hersteller
Karl-Heinz Entrich † 7.21
More ...
Usage in Models 1= 1974?? ; 1= 1977? ; 1= 1978?? ; 1= 1978? ; 1= 1978 ; 1= 1979?? ; 1= 1979 ; 1= 1980?? ; 1= 1980 ; 1= 1981?? ; 1= 1982?? ; 1= 1985?? ; 3= 1986?? ; 2= 1986? ; 3= 1986 ; 3= 1987 ; 1= 1988?? ; 1= 1988
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):25
