50C5

Information - Help
ID = 1071

Country:
Worldwide
Brand:
Tube type:  Beam Power Tube   beam power   Power/Output
Identical to 50C5 = CV1959 = HL92
Similar Tubes
Heater different:
  25C5
Different connections:
  50B5
First year 1948 -- Collector info (Sammler)
First Source (s)
Feb.1948 : Electron Tube Registration List
Predecessor Tubes 50L6GT   50L6G
Base Miniatur-7-Pin-Base B7G, USA 1940 (Codex=Zh)
Was used by Radio/TV-reception etc.
Filament Vf 50 Volts / If 0.15 Ampere / Indirect / Specified current AC/DC ~ = (Series working)
Description

Pa <6W; Va <150; gm=7.5mA/V; Ra =10k


Dimensions (WHD)
incl. pins / tip		 19 x 66 x mm / 0.75 x 2.60 x inch
Tube prices 3 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973
Taschenbuch zum Röhren-Codex 1948/49
-- Original-techn. papers.

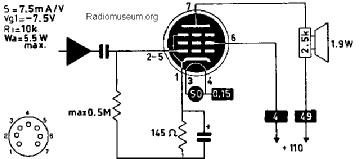

50C5: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †
50c5_so.png 50C5: ARRL Handbook 1972
Anonymous 10 Collector
More ...
Just Qvigstad 		50c5_techdat01.png
50C5: RCA Tube Manual
Peter Hoddow
More ...
Usage in Models 3= 1948?? ; 3= 1948? ; 25= 1948 ; 13= 1949?? ; 13= 1949? ; 40= 1949 ; 57= 1950?? ; 105= 1950? ; 87= 1950 ; 8= 1951?? ; 148= 1951? ; 132= 1951 ; 32= 1952?? ; 240= 1952? ; 101= 1952 ; 22= 1953?? ; 118= 1953? ; 202= 1953 ; 34= 1954?? ; 261= 1954? ; 158= 1954 ; 72= 1955?? ; 259= 1955? ; 155= 1955 ; 23= 1956?? ; 287= 1956? ; 122= 1956 ; 12= 1957?? ; 182= 1957? ; 159= 1957 ; 27= 1958?? ; 162= 1958? ; 166= 1958 ; 15= 1959?? ; 283= 1959? ; 278= 1959 ; 125= 1960?? ; 151= 1960? ; 119= 1960 ; 13= 1961?? ; 93= 1961? ; 89= 1961 ; 22= 1962?? ; 142= 1962? ; 57= 1962 ; 11= 1963?? ; 155= 1963? ; 61= 1963 ; 11= 1964?? ; 114= 1964? ; 70= 1964 ; 36= 1965?? ; 160= 1965? ; 20= 1965 ; 31= 1966?? ; 25= 1966? ; 17= 1966 ; 6= 1967?? ; 7= 1967? ; 3= 1967 ; 9= 1968?? ; 3= 1968? ; 2= 1969?? ; 1= 1969 ; 6= 1970?? ; 2= 1970 ; 1= 1972 ; 1= 1973 ; 2= 9999? ; 5= 9999
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):5574
