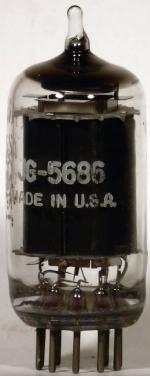

5686

Information - Help
ID = 18528

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Developer: Raytheon Mfg. Co.; Cambridge, MA
Tube type:  Beam Power Tube   Power/Output
Identical to 5686 = CK5686 = CV3612
First Source (s)
Apr.1959 : RCA Receiving Tube Manual RC-15 "Tentative Data"
16.Mar.1950 : Electron Tube Registration List 840

Base Noval, 9 pin miniature (USA pico-9) B9A
Filament Vf 6.3 Volts / If 0.35 Ampere / Indirect / Specified voltage AC/DC
Description High-rel beam power amplifier. Pa <8.25W. For AF and RF amplification to f<160 MHz.
GE (also as GL-5686), Hytron, Raytheon, RCA, Sylvania and Tung Sol known manufacturers.
Tube prices 3 Tube prices (visible for members only)
Information source Röhren-Taschen-Tabelle, (Franzis RTT)
RCA Receiving Tube Manual RC-15
Tube Lore (I)
- - Manufacturers Literature

no43_g.gif 5686: RTT Schwandt
Günther Stabe † 19.8.20

More ...

Just Qvigstad
5686: Manufacturer's Literature
Emilio Ciardiello

More ...
Usage in Models 1= 1952 ; 1= 1961 ; 1= 1964 ; 1= 1965? ; 2= 1965 ; 1= 1967

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):7

Collection of



5686
