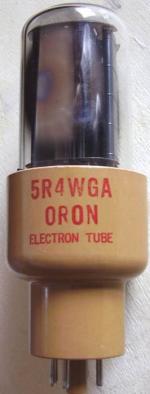

5R4WGA
|
Country:
United States of America (USA)
|
|
| Identical to |
5R4WGA
|
| Similar
Tubes |
Other shape (e.g. bulb type):
5R4GA
Normally replaceable-slightly different:
TE-93
Other class quality (otherwise equal):
5R4WGB
; 5R4WGY
|
| Base |
Octal (Int.Octal, IO) K8A, USA 1935
|
| Was used by |
Military and/or Government |
| Filament |
Vf 5 Volts / If 2 Ampere / Direct / Specified voltage AC/DC |
| Description |
Ruggedized, with hard glass bulb and glass-filled deep-skirt alkyd base.
Same as 5R4WGY but rated to full PIV up to 60,000 feet. Military preferred from 1955 to 1958. (Tube Lore I)
150mA max DC at 2.8KV PIV, 250mA max DC at 2.1KV PIV.
|
| Tube prices |
2 Tube prices (visible for members
only)
|
| Information source |
Tube Lore (I)
|
|
5R4WGA: Datenbl. Tung-Sol
Otto Frosinn
More ...
|
Just Qvigstad
|
5R4WGA: Tung-Sol Product Bulletin
Franz Scharner
More ...
|
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):7
