5Y3

Information - Help
ID = 3114

Country:
Worldwide
Brand:
Tube type:  Full-Wave Vacuum Rectifier   Power-supply
Identical to 5Y3 = 5Y3G
First year 06.Jun.1935 Electron Tube Registration List >40 models starting 1935, some with dated ads.
Base Octal (Int.Octal, IO) K8A, USA 1935 (Codex=Vy)
Was used by Radio/TV-reception etc.
Filament Vf 5 Volts / If 2 Ampere / Direct
Description

According to the nomenclature for American Octal tubes this tube would be a metal tube, as no suffix -G or -GT is added to the designation 5Y3, indicating the glass versions.
However this tube never appeared as a metal tube, but only in the glass versions 5Y3G and 5Y3GT.
Some manufacturers also stamped glass versions as 5Y3 only, contrary to the agreement, as the picture shows.
Also in schematic diagrams these suffixes are often omitted.


Text in other languages (may differ)
Information source Taschenbuch zum Röhren-Codex 1948/49

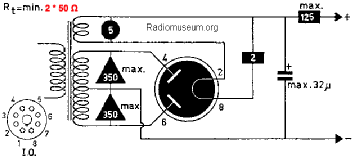

5Y3: corrected version
