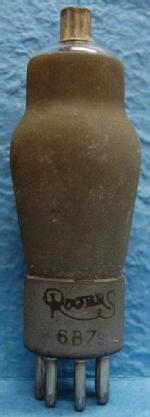

6B7S

Information - Help
ID = 9448

Country:
United States of America (USA)
Brand:
Tube type:  Double Diode-Pentode   Universal   Controlling (mu)
Identical to 6B7S = 6B7E = Ut6B7 = Ut-6B7 = VT162_GPO = CV1711
Similar Tubes
Other shape (e.g. bulb type):
  6B7
Base 7-Pin-Base-general, old, USA (Codex=Mb) Top contact with a cap.
Was used by Radio/TV-reception etc.
Filament Vf 6.3 Volts / If 0.3 Ampere / Indirect / Specified voltage AND current AC/DC
Dimensions (WHD)
incl. pins / tip		 x 116 x 38 mm / x 4.57 x 1.50 inch
Weight 39 g / 1.38 oz
Information source Taschenbuch zum Röhren-Codex 1948/49
6b7s_so.png 6B7S: ARRL Handbook 1972
Anonymous 10 Collector
6B7S: My schematic collection.
Pier Antonio Aluffi
Usage in Models 6= 1933 ; 19= 1934 ; 1= 1935? ; 2= 1935 ; 5= 1936 ; 1= 1937? ; 12= 1937 ; 3= 1938 ; 4= 1939
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):53

Collection of

George Papaiz (CDN)
