6HU8

Information - Help
ID = 20837



Tube type:  Double Beam Power Tube   Power/Output
Identical to 6HU8 = ELL80
Similar Tubes
Heater different:
  12HU8
First year 1960 Tube leaflet collection E.Erb Analysis by original leaflets
First Source (s)
Jul.1960 : Funkschau 1960, Heft 13
13.Mar.1961 : Electron Tube Registration List 3185
Base Noval, 9 pin miniature (USA pico-9) B9A
Was used by Radio/TV-reception etc.
Filament Vf 6.3 Volts / If 0.55 Ampere / Indirect

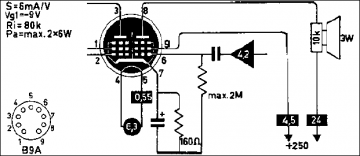

Description Twin output beam power tube. The 6HU8 (=ELL80) consists of 2 electrode units of the EL95 and is designed for push-pull applications up to 8.5 watts, also for Stereo with smaller output power.

6HU8 is the JEDEC registered code for the tube type ELL80 sold over the American market.
Text in other languages (may differ)
Tube prices 1 Tube prices (visible for members only)
6HU8: Internet
Miguel Angel Trujillo-Rodriguez
no89_g.gif 6HU8: RTT Schwandt
Günther Stabe † 19.8.20

Just Qvigstad
Usage in Models 7= 1965
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):7

Collection of

John Albion (CDN)
Emilio Ciardiello (I)
