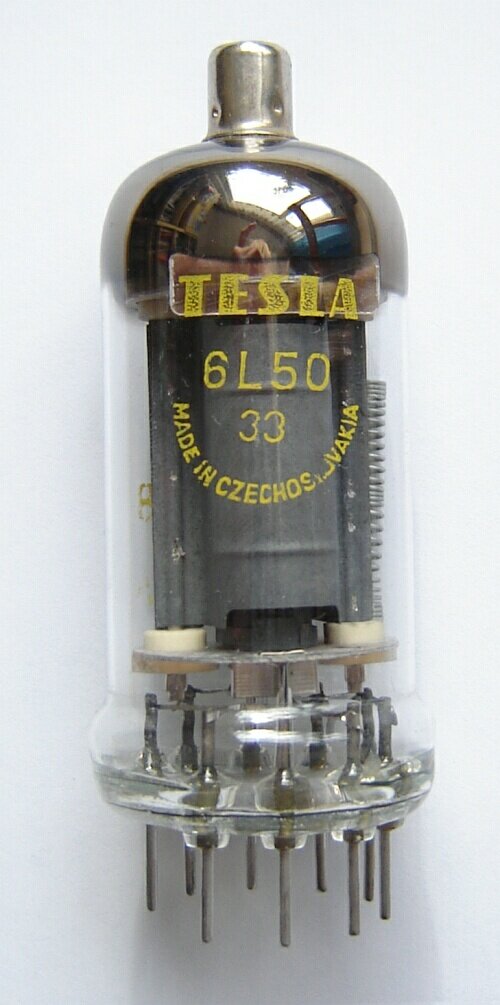

6L50

Information - Help
ID = 19083

Country:
Czechoslovakia
Brand: Tesla; Praha, Bratislava etc.
Tube type:  Beam Power Tube   beam power   Power/Output
Identical to 6L50
Base SPECIAL TUBEBASE in general Top contact with a cap.
Filament Vf 6.3 Volts / If 1 Ampere / Indirect / Specified voltage AC/DC
Description

Sockelung ist ähnlich wie Magnoval, aber größer. 9 Stifte auf 10teiligem Kreis (25mmØ), Stiftdurchmesser 1,25mmØ.


Information source
6l50_sockel.png 6L50: fr
Frank Reuter
More ...
6L50: Catalogue TESLA from 1968 year.
Josef Smitka
Usage in Models 1= 1953 ; 1= 1954 ; 1= 1955?? ; 1= 1962?? ; 1= 1965??
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):5

Collection of

Peter Steffen (CH)
Josef Smitka (CZ)
Bernhard Nagel (D)
Michael Mischke (D)
Stefan Müller (D)


6L50

Forum contributions about this tube
6L50
Threads: 2 | Posts: 7
Hits: 3568     Replies: 1
6L50 (6L50)
Wolfgang Lill
07.Jul.08 		  1
6L50 (6L50)

die Röhre wurde nur bei Tesla produziert
Hans-Thomas Schmidt
08.Jul.08 		  2
No subject
Edit:

Angaben wurden ins Datenblatt übernommen.

Thread kann gelöscht werden.

HTS.

Hits: 6633     Replies: 4
Tesla 6L50
Mietek Jozwik
24.Jan.07 		  1
Tesla 6L50
Have anyone idea how to obtain socket for Tesla 6L50 output Pentode (Supranowal socket) ?
Jacques Dudoret
29.Jan.07 		  2
6L50

Voici les caractéristiques de la 6L50. (source vademecum 1994)

Jacques DUDORET

Attachments

John Turrill
30.Jan.07 		  3
No subject
Dear Mietek,
                    I think this has what in U/K we call the "Magnoval"
base, though it would help if you could provide some dimensions
such as diam. (thickness) of pins and diameter of circle the pins
describe.
There was an American base identical, except pins were thinner
(Novar) I think.
I have a few "Magnoval" bases, though someone like Jan would
no doubt provide if you told him it was for a 6L50, see ----
http://www.askjanfirst.com/eindex.htm  no doubt other shops, too.
Let us know the dimensions to get correct base type and it can
be added to RMorg archives.
Regards,
                     John Turrill.
John Turrill
31.Jan.07 		  4
No subject
On further investigation, I am fairly sure the 6L50 is not the
"Magnoval" as I first thought; the dimensions on the data sheet
provided by Jaques Dudoret would indicate a much larger base
diameter - see also the photos in RMorg - I would still suggest
contacting the link I gave; if the worst comes to the worst, they
also supply various sizes of individual pin sockets, enabling
making up your own sockets, (precise marking-out required!!!)
Many years ago I made one up to suit an EL12, with success!
Further information,- see -----
dimensions available here)

Useful pages!
Good luck,
                  John Turrill.
Mietek Jozwik
02.Feb.07 		  5
No subject

Dears,

Thanks a lot for your help, data for the tube itself I had already, as I have Vademecum and Czech tubes catalogue.

Tube is nice and in data similar to 6L6.  Re-engineered for TV sweep circuits. As I ocassionally buy almost 100 pcs of 6L50 and few 6Y50 the only problem I have is to obtain few sockets.

You are right tube socket is not a magnoval. Pins are 1.25 mm thick spread on 25 mm ring of 36 o each.

Mietek

Attachments


6L50
