822S

Information - Help
ID = 17018

Country:
United States of America (USA)
Brand: Taylor Tubes Inc.; Chicago (IL)
Developer: Taylor Tubes Inc.; Chicago (IL)
Tube type:  Transmitting Triode, air cooled   Power/Output
Identical to 822S = 4670_Fischer
Similar Tubes
Other shape (e.g. bulb type):
  822_USA

Base Jumbo 4-pin bayonet (1918) (Codex=Bz) Sidecontact and top contact.
Was used by Transmittertube (Radio)
Filament Vf 10 Volts / If 4 Ampere / Direct
Description

Rated at 30 MHz


Dimensions (WHD)
incl. pins / tip
x 216 x 64 mm / x 8.50 x 2.52 inch
Information source Tube Lore (II)   p. 77
Babani, International Radio Tube Encyclopaedia   p. 180 & 181
Taschenbuch zum Röhren-Codex 1948/49

822s_so.png 822S: ARRL Handbook 1972
Anonymous 10 Collector


Just Qvigstad

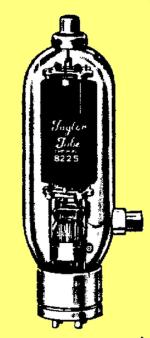

822S: Taylor Tubes
Franz Scharner
