8877

Information - Help
ID = 31234

Country:
United States of America (USA)
Brand: Eimac (brand name)
Tube type:  Transmitting Triode, air cooled   Power/Output
Identical to 8877 = 3CX1500A7 = YU209

Base TRANSMITTING & Power-TUBES/VALVES in gen
Filament Vf 5 Volts / If 10.5 Ampere / Direct / Specified voltage AC/DC
Description Forced Air-cooled Cermet VHF transmitting triode.
Pa <1500W; Gain 200 at 250 MHz. Special 7 pin base.
Information source -- Collector info (Sammler)

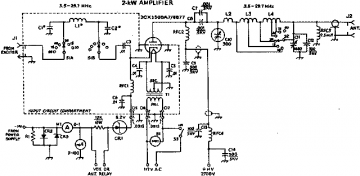

8877: ARRL Handbook 1974
Anonymous 10 Collector

8877_so.png 8877: ARRL Handbook 1974
Anonymous 10 Collector

8877: orig. data sheet Eimac
Anonymous 10 Collector

More ...
Usage in Models 1= 1971 ; 1= 1972 ; 1= 1990?? ; 1= 1990

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):4
