950

Information - Help
ID = 5822

Country:
United States of America (USA)
Brand:
Developer: Ken-Rad, The Kentucky Radio Corporation; Owensboro, KY
Tube type:  Vacuum Pentode   Power/Output
Identical to 950
Similar Tubes
Normally replaceable-slightly different:
  133 ; 1F4 ; 33
Base UY-Base, 5 Pins (USA, April 1927) (Codex=Hy)
Filament Vf 2 Volts / If 0.12 Ampere / Direct / Battery =
Dimensions (WHD)
incl. pins / tip		 x 108 x 45 mm / x 4.25 x 1.77 inch
Weight 47 g / 1.66 oz
Tube prices 1 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973
Tube Lore (II)   p. 31
Babani, International Radio Tube Encyclopaedia
Taschenbuch zum Röhren-Codex 1948/49
950: Internet
Miguel Angel Trujillo-Rodriguez
172_2.png 950: Telefunken Werkstattbuch
Wolfgang Bauer

Just Qvigstad 		950.png

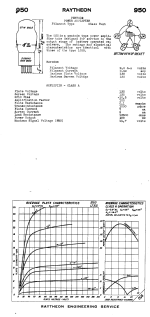

950: Raytheon Databook 1937
Emilio Ciardiello
Usage in Models 3= 1933 ; 8= 1934 ; 8= 1935 ; 1= 1936?? ; 25= 1936 ; 4= 1937?? ; 1= 1937? ; 5= 1937 ; 1= 1940?? ; 1= 1940?
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):57
