A109D

Information - Help
ID = 47350

Country:
Germany
Brand: Halbleiterwerk Frankfurt /Oder, VEB, (HFO); Frankfurt /Oder (Ostd.)
Tube type:  IC - Integrated Circuit   Universal
Identical to A109D
Similar Tubes
Normally replaceable-slightly different:
  MAA501 ; MAA504 ; SN72709 ; µA709
Base SPECIAL TUBEBASE in general
Description

Monolithic operational amplifier for universal purpose.
-


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip		 18 x 7 x 8 mm / 0.71 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz

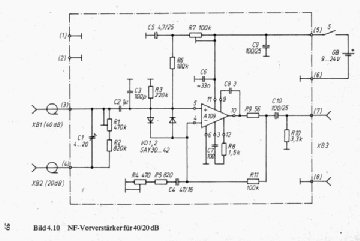

A109D: electronica 230 S.59
Egon Strampe
a109.png A109D: Halbleiter-Bauelemente 1978
Egon Strampe
A109D: Halbleiter-Bauelemente 1978
Günther Stabe † 19.8.20
More ...
Usage in Models 1= 1970?? ; 1= 1975?? ; 1= 1975? ; 1= 1978? ; 1= 1978 ; 1= 1979
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):6

Collection of

Jörg Kulbe (D)
Michael Mischke (D)
Oskar Elm (D)
Peter Pfeiffer (D)


A109D
