AA112

Information - Help
ID = 34232

Country:
Germany
Brand: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Tube type:  Solid-State-Diode   Detector
Identical to AA112 = D1_BRC = D14_BRC
Similar Tubes
Normally replaceable-slightly different:
  AA110 ; AA116 ; AA123 ; OA90
Other characteristic (electr. data):
  2AA112
First Source (s)
Mar.1961 : -- Collector info (Sammler)
Base Wires
Description Material/Aufbau: Germanium Punktkontakt;
Form/Case: Allglas, ähnlich DO-29;
Daten/electr.data: I F: 10 mA; U F: 1 V; I sp: 15 µA; U sp: 10 V; Imax: 10 mA; Umax: 15 V; f g: 10.7 MHz; tmax j: 100 °C.
-
Dimensions (WHD)
incl. pins / tip		 5 x 10 x mm / 0.20 x 0.39 x inch
Weight 1 g / 0.04 oz
Information source -- Collector info (Sammler)   KTT 1969/70

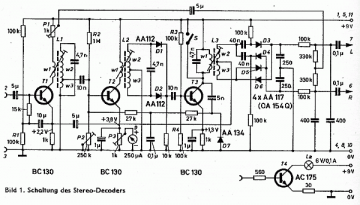

AA112: Funktechnik 3/66
Egon Strampe
sod6_4.gif AA112: DVT 1971 ECA
Günther Stabe † 19.8.20
AA112: Telefunken Handbuch Halbleiter 66/67
Anonymous 10 Collector
More ...
Usage in Models 1= 1958?? ; 2= 1960?? ; 1= 1962?? ; 3= 1962? ; 5= 1962 ; 19= 1963 ; 2= 1964?? ; 6= 1964? ; 22= 1964 ; 1= 1965? ; 59= 1965 ; 1= 1966?? ; 7= 1966? ; 68= 1966 ; 2= 1967?? ; 9= 1967? ; 50= 1967 ; 2= 1968?? ; 10= 1968? ; 70= 1968 ; 2= 1969?? ; 18= 1969? ; 65= 1969 ; 4= 1970?? ; 8= 1970? ; 76= 1970 ; 1= 1971?? ; 3= 1971? ; 27= 1971 ; 1= 1972?? ; 4= 1972? ; 27= 1972 ; 2= 1973? ; 20= 1973 ; 1= 1974?? ; 19= 1974 ; 3= 1975?? ; 15= 1975 ; 2= 1976?? ; 11= 1976 ; 5= 1977 ; 1= 1978?? ; 2= 1978 ; 2= 1980 ; 8= 9999
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):667

Collection of

Marcello Astolfi (I)
Karlheinz Fischer (D)
Daniel Consales (D)
Günter Kudicke (D)
