AF102

Information - Help
ID = 33967

Country:
Germany
Brand: Valvo GmbH, Radioröhrenfabrik; Hamburg
Tube type:  Transistor   RF/IF-Stage
Identical to AF102
Similar Tubes
Other shape (e.g. bulb type):
  AF106 ; AF306
Normally replaceable-slightly different:
  2N1726 ; 2N1727
Other base and data slightly different:
  160T1
First Source (s)
Mar.1962 : Valvo-Berichte
Successor Tubes AF178
Base Wires
Description

PNP germanium diffusion-alloy VHF transistor.
-


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip		 8 x 9 x mm / 0.31 x 0.35 x inch
Weight 4 g / 0.14 oz
Information source -- Collector info (Sammler)   KTT 1969/70

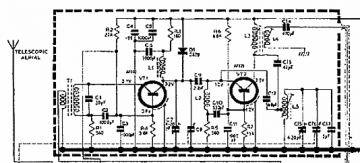

AF102: Kofferradio Pye 3313: FM-Tuner
Günther Stabe † 19.8.20     More ...
to7_tvt_15.gif AF102: TVT 73
Günther Stabe † 19.8.20
AF102: valvo Taschenbuch 1965
Anonymous 10 Collector
Usage in Models 1= 1960?? ; 2= 1961 ; 1= 1962?? ; 5= 1962? ; 17= 1962 ; 1= 1963?? ; 12= 1963? ; 40= 1963 ; 5= 1964?? ; 11= 1964? ; 47= 1964 ; 5= 1965?? ; 11= 1965? ; 27= 1965 ; 5= 1966?? ; 25= 1966? ; 26= 1966 ; 2= 1967?? ; 5= 1967? ; 3= 1967 ; 5= 1968? ; 5= 1968 ; 1= 1969 ; 3= 1970?? ; 2= 1970? ; 4= 1971?? ; 1= 1972?? ; 2= 9999
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):274
