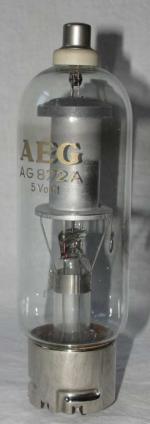

AG872A

Information - Help
ID = 34481

Country:
Germany
Brand: AEG (Radios) Allg.Elektricitäts-Ges.
Developer: General Electric Co. (GE); Bridgeport CT, Syracuse NY
Tube type:  Half-Wave Mercury-Vapor Rectifier   Power-supply
Identical to AG872A
Similar Tubes
Normally replaceable-slightly different:
  872A

Base Jumbo 4-pin bayonet (1918) Top contact with a cap.
Was used by Transmittertube (Radio)
Filament Vf 5 Volts / If 7 Ampere / Direct / Specified voltage AND current AC/DC
Description

Uasperr: 10kV; Ia: 1,25A; Iamax: 5A


Dimensions (WHD)
incl. pins / tip
x 217 x 58 mm / x 8.54 x 2.28 inch
Weight 200 g / 7.05 oz
Information source - - Manufacturers Literature   AEG Preisliste 1957
Universal Vade-Mecum, Electron Valves and Semiconductor Devices   Section 66, p. 89 & 90


Just Qvigstad
AG872A: AEG Preisliste 1960/61
Anonymous 15 Collector

Collection of



AG872A
