AN7178

Information - Help
ID = 68016

Country:
Japan
Brand: Matsushita tubes; Osaka
Tube type:  IC - Integrated Circuit   Power/Output
Identical to AN7178
Similar Tubes
Normally replaceable-slightly different:
  AN7168

Base Wires
Description

Monolithic Integrated Circuit Stereo Power Amplifier for Car Radios.
-


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
30 x 20 x 5 mm / 1.18 x 0.79 x 0.20 inch
Weight 4 g / 0.14 oz
Information source -- Original-techn. papers.   Panasonic

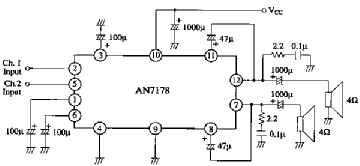

AN7178: Panasonic
Günther Stabe † 19.8.20

sil_12h~~4.png AN7178: Panasonic
Günther Stabe † 19.8.20

AN7178: Panasonic
Günther Stabe † 19.8.20
