BA3121

Information - Help
ID = 81900

Country:
Japan
Brand: ROHM Co., Ltd.; Kyoto
Tube type:  IC - Integrated Circuit   Audio Frequency
Identical to BA3121

Base SPECIAL TUBEBASE in general
Description

Aufbau/internal: IC (__ Trans., __ Widerst., __ Dioden, __ Kond.);
Form/Case/Outline: DIP-8 | SOP-8 (BA3121F) | SIL-8 (BA3121N);

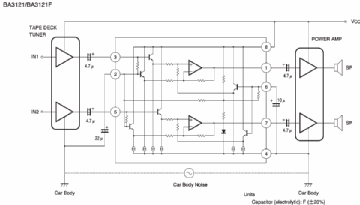

Type/Application: Ground isolation amplifier for use in car applications;
Daten/electr.data: Vcc: 4...18 V typ.: 12 V); Icc: <14 mA; Pd: <900 mW; t op: -30...+85 °C;
-


Dimensions (WHD)
incl. pins / tip
10 x 7 x 8 mm / 0.39 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature

BA3121: ROHM
Günther Stabe † 19.8.20
    More ...
ba3121_s.png BA3121: ROHM
Günther Stabe † 19.8.20

BA3121: ROHM
Günther Stabe † 19.8.20
