BA328

Information - Help
ID = 40373

Country:
Japan
Brand: ROHM Co., Ltd.; Kyoto
Tube type:  IC - Integrated Circuit   Audio Frequency
Identical to BA328
Base Wires
Description Aufbau/Content: IC (pro Amp: 6 Trans., 8 Widerst., 6 Dioden, 1 Kond.);
Form/Case: SIP-8 (BA328) | SOP-8 (BA328F);

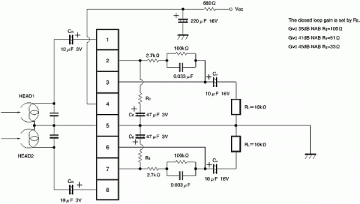

Applikation/Type: Car stereo low noise dual pre-amplifier;
Daten/electr.data: ; Vcc: 8 V, Iq: 5 mA, Pd: 500 mW, THD: 0.1 %; Rin: 50 kOhm; t op: -25...+75 °C.
-
Dimensions (WHD)
incl. pins / tip		 20 x 10 x 3 mm / 0.79 x 0.39 x 0.12 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature
BA328: ROHM
Günther Stabe † 19.8.20
ba328_s.png BA328: ROHM
Günther Stabe † 19.8.20
More ...
BA328: ROHM
Günther Stabe † 19.8.20
Usage in Models 1= 1980? ; 1= 1985?? ; 1= 1991?
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):3

Collection of

Jacky Parmentier (F)
