BA6398

Information - Help
ID = 70617

Country:
Japan
Brand: ROHM Co., Ltd.; Kyoto
Tube type:  IC - Integrated Circuit   Power-supply
Identical to BA6398
Base Wires
Description

Aufbau/Content: IC (__ Trans., __ Widerst., __ Dioden, __ Kond.);
Form/Case/Outline: HSOP-28 (BA6398FP);
Application/Type: 4-channel BTL driver for CD players;
Daten/electr.data: ; Vcc: 6...9 V; Iccq: 10 mA, Pd: <1.7 W, t op: -35...+85 °C.
-


Dimensions (WHD)
incl. pins / tip		 19 x 2 x 8 mm / 0.75 x 0.08 x 0.31 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature

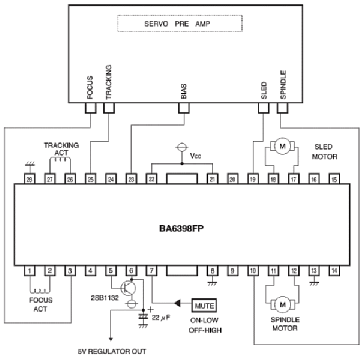

BA6398: ROHM
Günther Stabe † 19.8.20
hsop_28~~7.png BA6398: ROHM
Günther Stabe † 19.8.20
BA6398: ROHM
Günther Stabe † 19.8.20
Usage in Models 1= 1994?? ; 1= 1995?? ; 1= 2000??
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):3
