BC171

Information - Help
ID = 36232

Country:
Germany
Brand: Intermetall Halbleiterwerk, Düsseldorf
Tube type:  Transistor   Audio Frequency
Identical to BC171
Similar Tubes
Normally replaceable-slightly different:
  BC107 ; BC183 ; BC207 ; BC237 ; BC317 ; BC407 ; BC437 ; BC547 ; BCY58
First Source (s)
Mar.1967 : -- Collector info (Sammler)
Base Wires
Description NPN silicon planar transistor for general purposes.
-
Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip		 5 x 5 x 4 mm / 0.20 x 0.20 x 0.16 inch
Weight 1 g / 0.04 oz
Information source - - -
-- Collector info (Sammler)   KTT 1969/70
- - -
- - -

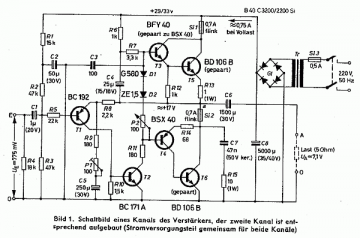

BC171: Funktechnik 5/67
Egon Strampe     More ...
to92_24.gif BC171: TVT 1969 Verlag Nolde Dachau
Günther Stabe † 19.8.20
BC171: ITT_Transistoren 1971_72
Thomas Günzel † 1.8.22
More ...
Usage in Models 1= 1964 ; 1= 1966?? ; 1= 1967? ; 1= 1968?? ; 1= 1968? ; 3= 1968 ; 9= 1969? ; 8= 1969 ; 3= 1970?? ; 6= 1970? ; 9= 1970 ; 3= 1971?? ; 9= 1971? ; 8= 1971 ; 2= 1972?? ; 2= 1972? ; 8= 1972 ; 11= 1973 ; 1= 1974 ; 2= 1975? ; 2= 1975 ; 2= 1976 ; 1= 1977? ; 1= 1977 ; 1= 1978?? ; 1= 1980??
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):97

Collection of

Museum Roggenhofer (A)
Peter Pfeiffer (D)
Marcello Astolfi (I)
Karlheinz Fischer (D)
Jacky Parmentier (F)
Oskar Elm (D)
Collection of a member from D


BC171
