BZY85

Information - Help
ID = 35559

Country:
Germany
Brand: Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
Tube type:  Solid-State-Diode   Power-supply
Identical to BZY85
Similar Tubes
Normally replaceable-slightly different:
  BZX83 ; BZY88 ; D4_BRC ; SZX19
Predecessor Tubes OA126
Base Wires
Description

Material/Aufbau/Pol.: Silizium Zenerdiode;
Form/Case/Outline: ~ DO-7;
Daten/electr.data: I F: 100 mA, U F: 1 V, Isp: <0.01 µA, N: 250 mW, Imax: 5 mA, Umax: 3.6-22 * V, f g: 70 MHz, tmax j: 125 °C.
*) Suffix=Regelspannung: C2V7/C3/C3V3/C3V6/C3V9/4V7/C5V1/C5V6/C6V2/C6V8/ C7V5/C8V2/C9V1/C10/C11/C12/C13V5/C15/C16V5/C18/C20/C22/C24V5; +/- 5%.
*) Suffix=Regelspannung: D1/D4V7/D5V6/D6V8/D8V2/D10/D12/D15/D18/D22; +/- 10%.
-


Dimensions (WHD)
incl. pins / tip		 8 x 3 x mm / 0.31 x 0.12 x inch
Weight 1 g / 0.04 oz
Information source -- Collector info (Sammler)   KTT 1969/70

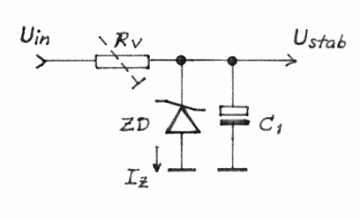

BZY85: Standardbeschaltung für Z-Dioden
Günther Stabe † 19.8.20
do29_50.gif BZY85: DVT 1971 ECA
Günther Stabe † 19.8.20
BZY85: Telefunken Taschenbuch 1971
Heinz Höger
