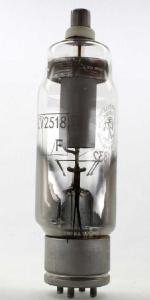

CV2518
|
Country:
Worldwide
|
|
| Identical to |
CV2518
= GXU2
= 4B32
|
| Base |
Top contact with a cap.
|
| Was used by |
Transmittertube (Radio) |
| Filament |
Vf 5 Volts / If 7.5 Ampere / Direct / Specified voltage AND current AC/DC |
| Description |
Va <10kV piv, Ia <1.25A mean;
|
Dimensions (WHD)
incl. pins / tip |
x 200 x 58 mm / x 7.87 x 2.28 inch |
| Information source |
Taschenbuch zum Röhren-Codex 1948/49
Universal Vade-Mecum, Electron Valves and Semiconductor Devices p. 39
-- Original prospect or advert
|
|
CV2518: Manufacturer's Literature
Emilio Ciardiello
|
|
|
Collection of
Collection of a member from FIN |
|
|
|
