CV3559
|
|
|
|
|
| Tube type: |
Triode, vacuum |
|
| Identical to |
CV3559
= 2C53
|
| Base |
Octal (Int.Octal, IO) K8A, USA 1935
Top contact with a cap.
|
| Filament |
Vf 6.3 Volts / If 0.3 Ampere / Indirect |
| Description |

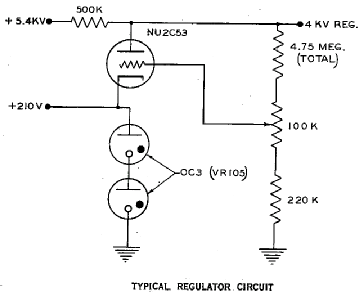

HV triode, intended for use as shunt regulator.
|
| Information source |
-- Original-techn. papers.
- - -
- - -
- - -
|
CV3559: Manufacturer's Literature
Emilio Ciardiello
|
CV3559: Manufacturer's Literature
Emilio Ciardiello
|
Just Qvigstad
|
|
|
|
|
|
