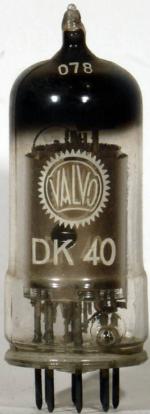

DK40

Information - Help
ID = 699

Country:
Europe
Brand: Common type Europe tube/semicond.
Developer: Philips; Eindhoven (tubes international!); Miniwatt
Tube type:  OCTODE   Frequency converter   Controlling (mu)
Identical to DK40 = MDK40
First year Dec.1948 Tube leaflet collection E.Erb Analysis by original leaflets [FS4803, RM4805]
Base Rimlock base B8A
Was used by Radio/TV-reception etc.
Filament Vf 1.4 Volts / If 0.05 Ampere / Direct / Battery =
Description

Mischröhre, ab 1950 in Deutschland.


Tube prices 4 Tube prices (visible for members only)
Information source Taschenbuch zum Röhren-Codex 1948/49
Tube Tester Data Avo CT160
DK40: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †
dk40.png DK40
Wolfgang Bauer

Just Qvigstad 		dk40_data1.png
DK40: Funkschau Röhrendokumente
Anonymous 10 Collector
More ...
Usage in Models 8= 1948 ; 1= 1949?? ; 7= 1949? ; 13= 1949 ; 2= 1950?? ; 12= 1950? ; 22= 1950 ; 2= 1951?? ; 4= 1951? ; 21= 1951 ; 1= 1952?? ; 5= 1952? ; 10= 1952 ; 5= 1953? ; 5= 1953 ; 1= 1954?? ; 1= 1954 ; 1= 1955?? ; 1= 1955? ; 2= 1955 ; 1= 1956? ; 2= 1956
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):127
