EF3

Information - Help
ID = 3474

Country:
Europe
Brand: Common type Europe tube/semicond.
Developer: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Tube type:  Vacuum Pentode   RF/IF-Stage   Controlling (mu)
Identical to EF3
Similar Tubes
Heater different:
  AF3 ; CF3 ; EF9nT ; VF3
First year Jul.1936 Tube leaflet collection E.Erb Analysis by original leaflets
First Source (s)
Feb.1936 : Funkschau 1936, # 5
Jan.1936 : Fortschritte der Funktechnik und ihrer Grenzgebiete (8 Bände) 1936 # 1
Predecessor Tubes EF2
Successor Tubes EF5
Base Europe side contact P8A (Au P, 8SC) (Codex=Sf) Top contact with a cap.
Filament Vf 6.3 Volts / If 0.24 Ampere / Indirect / Specified voltage AC/DC
Description

Nachzügler zur ersten europäischen Serie von Autoradioröhren. Die EF3 ist die ZF- Regelröhre.


Tube prices 1 Tube prices (visible for members only)
Information source Taschenbuch zum Röhren-Codex 1948/49

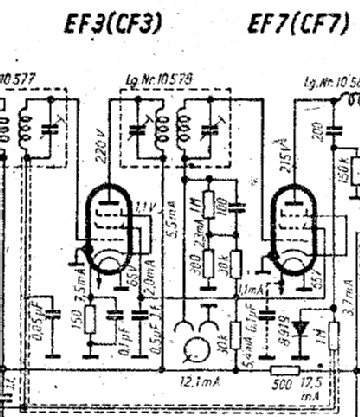

EF3: schaltplans.
Egon Strampe
28_7.png EF3: Telefunken Werkstattbuch
Wolfgang Bauer

Just Qvigstad 		ef3_data1.png
EF3: Telefunken 1937
Robert Schmalstieg
More ...
Usage in Models 1= 1936 ; 1= 1938 ; 1= 1939?? ; 1= 1945?? ; 1= 1948??
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):5
