GA105

Information - Help
ID = 46179

Country:
Germany
Brand: Halbleiterwerk Frankfurt /Oder, VEB, (HFO); Frankfurt /Oder (Ostd.)
Developer: Werk für Bauelemente der Nachrichtentechnik (WBN), Teltow, VEB, RFT (Ostd.) - vorm. DRALOWID
Tube type:  Solid-State-Diode   Detector
Identical to GA105
Similar Tubes
Other shape (e.g. bulb type):
  OA626
Predecessor Tubes OA626
Base Wires
Description Material/Aufbau: Germanium Punktkontakt;
Form/Case: (axial);
Daten/electr.data: I F: 3 mA; U F: 1 V; I sp: 100 µA; U sp: 10 V; Imax: 45 mA; Umax: 24 V; tmax: 60 °C.
Ge-Videodiode -
Dimensions (WHD)
incl. pins / tip		 8 x 3 x mm / 0.31 x 0.12 x inch
Weight 1 g / 0.04 oz
Information source -- Collector info (Sammler)   Radio und Fernsehen H.11/1966
- - -
- - -
- - -
GA105: electronica 124 S.105
Egon Strampe

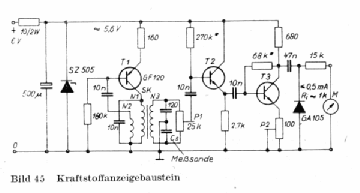

do-29_5.gif GA105
Günther Stabe † 19.8.20
Usage in Models 1= 1973 ; 1= 1974?
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):2

Collection of

Michael Mischke (D)
Peter Pfeiffer (D)


GA105
