HGTG12N60B3D

Information - Help
ID = 57036

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  Transistor   Power-supply
Identical to HGTG12N60B3D
Base Wires
Description Material/Aufbau/Pol.: UFS N-Channel IGBT with Anti-Parallel Hyperfast Diode;
Form/Case: TO-220 (HGTG12N60B3D) | TO-247 (HGTP12N60B3D) | TO-263 (HGTS12N60B3DS) Anschlussfolge GCE;
Daten/electr.data: N: 104 W; Ic 25: 27 A; I cm: 110 A; BV ces: 600 V; Vges: +/- 20 V; V sat: 1.6 V; tmax j: 150 °C.
High Voltage Power Switch; short name: 12N60B3
Manufactured by InterSil (Fairchild, ...) -
Dimensions (WHD)
incl. pins / tip		 10 x 16 x 4 mm / 0.39 x 0.63 x 0.16 inch
Weight 2 g / 0.07 oz
Information source - - -

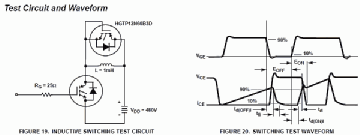

- - Manufacturers Literature   InterSil
- - -
- - -
HGTG12N60B3D: InterSil
