LA2231

Information - Help
ID = 45980

Country:
Japan
Brand: Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Tube type:  IC - Integrated Circuit   Indication
Identical to LA2231

Base SPECIAL TUBEBASE in general
Description

Aufbau/Content: IC (__ Trans., __ Widerst., __ Dioden);
Form/Case/Outline: SDIP-24 (LA2231) | SOP-24 (LA2231M);
Type/Application: RDS (+ ARI) Signal Demodulator;
Daten/electr.data: Vcc: <12 V; Iccq: 20 mA; Pd: 450 mW; t op: -30...+80 °C;
-


Dimensions (WHD)
incl. pins / tip
21 x 7 x 8 mm / 0.83 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature   Sanyo

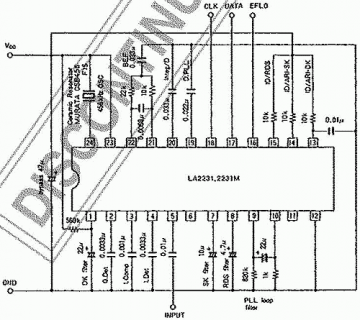

LA2231: Sanyo
Günther Stabe † 19.8.20

dip24_schmal_3.gif LA2231: G.S.
Günther Stabe † 19.8.20

LA2231: Sanyo
Günther Stabe † 19.8.20
