LA6393

Information - Help
ID = 56057

Country:
Japan
Brand: Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Tube type:  IC - Integrated Circuit   Universal
Identical to LA6393

Base Wires
Description

Aufbau/Content: IC (__ Trans., __ Widerst., __ Dioden, __ Kond.);
Form/Case/Outline: SIP-9 (LA6393S) | DIP-8 (LA6393D);
Type/Application: Dual high performance comparators;
Daten/electr.data: Vcc: 2...36 V single power supply | +/- 1...18 V dual power supply; Icc: 0.6 mA; Pd: <570 mW, t op: -30...+85 °C.
Varianten: LA6393A / LA6393M / LA6393T - Marked with A6393... (!) -


Dimensions (WHD)
incl. pins / tip
20 x 6 x 3 mm / 0.79 x 0.24 x 0.12 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature

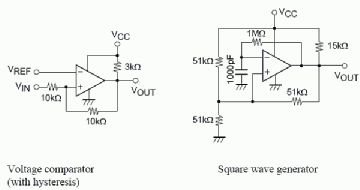

LA6393: Sanyo
Günther Stabe † 19.8.20

la6393s_s.png LA6393: Sanyo
Günther Stabe † 19.8.20

More ...
LA6393: Sanyo
Günther Stabe † 19.8.20
