LC7259
|
Country:
Japan
|
|
| Identical to |
LC7259
|
| Base |
SPECIAL TUBEBASE in general
|
| Description |
Aufbau/Content: IC (CMOS);
Form/Case/Outline: DIP-42;

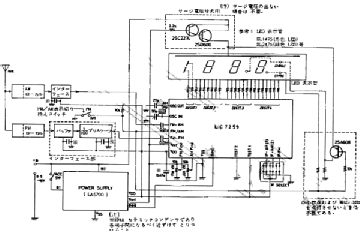

Type/Application: 4 Digits 7-Segment LED Driver for kHz / MHz display (Tuning FM / MW / LW);
Daten/electr.data: Vdd: 9 V; Idd: 10 mA; Pd: <800 mW; t op: -30...+75 °C;
Ähnlich/similar: LC7250; LC7253: 5 Digits = LW / MW / SW / FM -
|
Dimensions (WHD)
incl. pins / tip |
53 x 7 x 15 mm / 2.09 x 0.28 x 0.59 inch |
| Weight |
1 g / 0.04 oz |
| Information source |
- - Manufacturers Literature
|
LC7259: Sanyo
Günther Stabe † 19.8.20
|
LC7259: Sanyo
Günther Stabe † 19.8.20
|
|
LC7259: Sanyo
Günther Stabe † 19.8.20
More ...
|
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):6
|
|
|
|
