MC1307P

Information - Help
ID = 44764

Country:
United States of America (USA)
Brand: Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Developer: Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Tube type:  IC - Integrated Circuit   Audio Frequency
Identical to MC1307P
Similar Tubes
Normally replaceable-slightly different:
  SN76110
Successor Tubes MC1310   LM1310
Base SPECIAL TUBEBASE in general
Description

FM Multiplex Stereo Demodulator


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip		 18 x 7 x 8 mm / 0.71 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature   Motorola

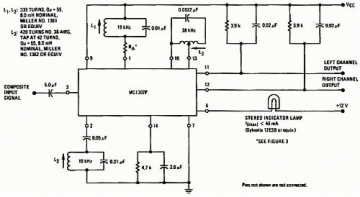

MC1307P: Motorola
Günther Stabe † 19.8.20     More ...
dil14_to_42.gif MC1307P: TTT Steidle 1981
Günther Stabe † 19.8.20
MC1307P: Motorola
Günther Stabe † 19.8.20
Usage in Models 1= 1970 ; 1= 1971?? ; 2= 1971 ; 1= 1972? ; 2= 1972 ; 1= 1973? ; 1= 1975?? ; 1= 1976
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):10

Collection of

Siegfried Neumann (D)
