NE564

Information - Help
ID = 81899

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  IC - Integrated Circuit   RF/IF-Stage
Identical to NE564

Base SPECIAL TUBEBASE in general
Description

Aufbau/internal: IC (__ Trans., __ Widerst., __ Dioden);
Form/Case/Outline: DIP-16 (NE564N / SE564N) | SOP-16 (NE564D);
Type/Application: Phase-Lock Loop;
Daten/electr.data: Vcc: 5 V; Icc: __ mA; Pd: <600 mW; t op: 0...70 °C;
Developed by Signetics (USA)
-


Dimensions (WHD)
incl. pins / tip
20 x 7 x 8 mm / 0.79 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature   Philips

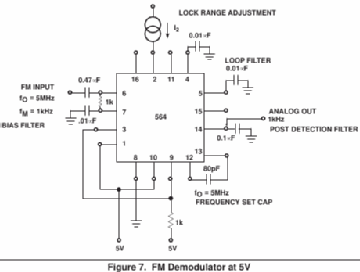

NE564: Philips
Günther Stabe † 19.8.20

ne564_s.png NE564: Philips
Günther Stabe † 19.8.20

NE564: Philips
Günther Stabe † 19.8.20
