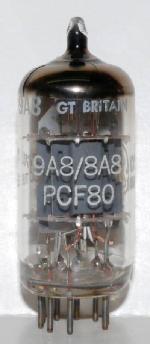

PCF80

ID = 3390

Country:

Worldwide

Brand:	Common type Worldwide tube/semicond. Common type Worldwide tube/semicond. General Electric Co. (GE); Bridgeport CT, Syracuse NY
Tube type:	Triode-Pentode Frequency converter

Identical to

PCF80 = LN329 = LZ329 = 9A8 = 8A8 = 30C1 = 9TP9 = 9Ф8П

Similar Tubes

Normally replaceable-slightly different:

9C8 ; 9TP15 ; LZ319

Heater different:

ECF80 ; UCF80

Other base and data slightly different:

PCF84

First year

1953 Tube leaflet collection E.Erb Analysis by original leaflets

First Source (s)

Sep.1953 : Funkschau # 18

Successor Tubes

PCF84

Base

Noval, 9 pin miniature (USA pico-9) B9A

Was used by

Radio/TV-reception etc.

Filament

Vf 9 Volts / If 0.3 Ampere / Indirect / Specified current AC/DC ~ = (Series working)

Tube prices

5 Tube prices (visible for members only)

PCF80: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse Karel De Reus † More ...
PCF80: RTT 1974 (Franzis) 13. Auflage Martin Renz More ...	Just Qvigstad	PCF80: Manufacturer's Literature Emilio Ciardiello More ...

Usage in Models

1= 1953? ; 7= 1953 ; 4= 1954?? ; 5= 1954? ; 79= 1954 ; 6= 1955?? ; 9= 1955? ; 119= 1955 ; 17= 1956?? ; 12= 1956? ; 111= 1956 ; 35= 1957?? ; 26= 1957? ; 81= 1957 ; 16= 1958?? ; 22= 1958? ; 107= 1958 ; 6= 1959?? ; 23= 1959? ; 103= 1959 ; 52= 1960?? ; 34= 1960? ; 116= 1960 ; 24= 1961?? ; 36= 1961? ; 106= 1961 ; 31= 1962?? ; 59= 1962? ; 101= 1962 ; 37= 1963?? ; 46= 1963? ; 64= 1963 ; 35= 1964?? ; 22= 1964? ; 68= 1964 ; 55= 1965?? ; 53= 1965? ; 35= 1965 ; 49= 1966?? ; 33= 1966? ; 22= 1966 ; 13= 1967?? ; 34= 1967? ; 23= 1967 ; 18= 1968?? ; 21= 1968? ; 16= 1968 ; 43= 1969?? ; 31= 1969? ; 22= 1969 ; 27= 1970?? ; 9= 1970? ; 26= 1970 ; 2= 1971?? ; 4= 1971? ; 21= 1971 ; 2= 1972?? ; 2= 1972? ; 16= 1972 ; 2= 1973?? ; 1= 1974? ; 4= 1974 ; 2= 1975?? ; 1= 1975? ; 2= 9999

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):2209
