µPD6142

Information - Help
ID = 64427

Country:
Japan
Brand: NEC Corporation, Nippon Electric Co. Ltd. (Nippon Denki); Tokyo
Tube type:  IC - Integrated Circuit   Indication
Identical to µPD6142

Base SPECIAL TUBEBASE in general
Was used by Radio/TV-reception etc.
Description

Aufbau/Content: IC (CMOS-LSI);
Form/Case/Outline: DIP-16 (µPD6142C-001) | SOP-16 (µPD6142G-101);
Application/Type: 12 Line x 24 Columns On-Screen Character Display; each character: 5 x 7 dots, 64 different characters available;
Daten/electr.data: Vdd: 5 V; F osc: 4...7 MHz; Pd: <100 mW; t op: -20...+75 °C.
Ähnlich/similar: µPD6141 (2 lines x 12 columns, 48 characters) -


Dimensions (WHD)
incl. pins / tip
20 x 7 x 8 mm / 0.79 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature

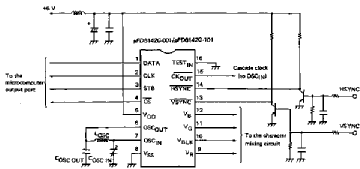

µPD6142: NEC
Günther Stabe † 19.8.20

_pd6142_s.png µPD6142: NEC
Günther Stabe † 19.8.20

µPD6142: NEC
Günther Stabe † 19.8.20
